The Dry Gas Coupling has been developed for a safe and quick connection and disconnection of hoses and loading arms to tank trucks, rail tankers and tank containers. During connection and after disconnection there is no spillage.

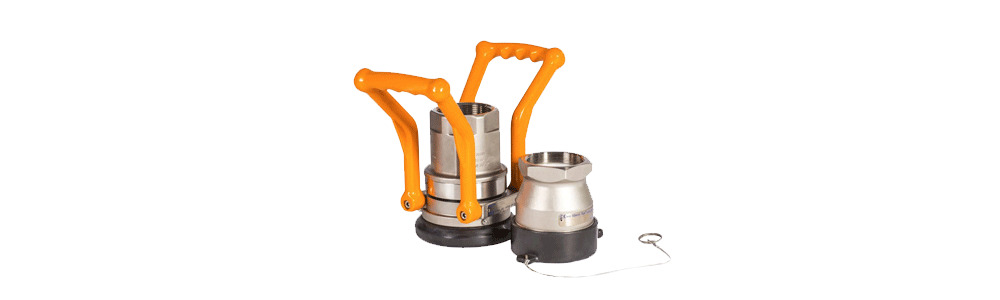

MannTek Dry Gas Coupling for safe handling of LPG – in liquid or vapor phases

This increases safety in the loading process of hazardous fluids.
Suitable for handling a range of LPG applications – Propane and Butane but also for other applications with similar requirements the Dry Gas Coupling is useful.
The robust design, easy servicing and high level of security assures safe and frequent use on a long term basis. This protects the environment and the media handled, reduces the risk of accidents and saves money.

A modular design with several optional features makes it possible to find individual solutions for your special application.

Why use the Dry Gas Coupling?
Dry Gas Couplings are used to prevent excess spillage. They protect people and property from dangerous and costly exposure by keeping hazardous liquids and vapors in-line and out of the environment.

Dry Gas Couplings are used at liquid or vapor transfer points where you do not want product loss. Using Dry Gas couplings will reduce the hazards typically found when handling/processing LPG.

  • Spill Free handling for loading and unloading tank trucks, rail tankers and tank containers.
  • Minimization spillage and product loss keeps the environment free from Hazardous Vapors and Liquids.
  • “Easy to Use” – design saves time and minimises health risks.
  • Reliability and easy servicing saves your investment.
  • Approved for safe handling of LPG – Propane (CAS 74-98-6, UN 1978) and Butane (CAS 106-97-8, UN1011). UN-classification 2.1 and similar applications.
  • 3” and 4” is compatible with existing Dry Disconnect / Dry Break Couplings according to STANAG 3756.
  • The 1” is a heavy duty vehicle filling nozzle according to EN 13760.
  • Approvals according to the European Directives PED and ATEX and the international requirements ADR, RID, IMDG and TDT.

SIZE
1”, 2”, 3” and 4”
MATERIAL
Gunmetal / Brass and Stainless Steel 316L SS-EN 10 272-1.4404+AT Seal: FPM (Viton) or NBR (Nitrile) according to EN549 B2/H3 other materials on request
TEMPERATURE RANGE
-20ºC (-4ºF ) to 80ºC (176ºF) (larger temperature range from -50ºC (-58ºF ) up to +200ºC (392 ºF ) is possible, depending on Seal material)
MAXIMUM WORKING PRESSURE
MWP PN 25. MAWP 300 psi
TEST PRESSURE
38 bar 450 psi
MIN. BURST PRESSURE
125 bar / 1813 psi
SAFETY FACTOR
5:1
END CONNECTIONS
Female and Male BSP / NPT, ACME, Witworth threads and flanged DIN and ANSI.
Dry Gas Coupling Applications
1" Dry Gas Couplings
Used as light & heavy duty vehicle filling nozzle (EN 13760) Vapor recovery line
2" Dry Gas Couplings
Loading / unloading for bobtail tank trucks and intermediate bulk trucks Vapour recovery line Connecting pipelines.
3" Dry Gas Couplings
3” and 2” Dry Gas Couplings for top loading of LPG rail tanker. 3” couplings for liquid phase and 2” for vapour phase 3” and 2” Dry Gas Couplings for sprayloading of both LPG rail tanker and Gas trucks. No vapour return.
3” and 2” Dry Gas Couplings for bottomloading of both LPG rail tanker and Gas trucks.
3” couplings for liquid phase and 2” couplings for gas phase.
4" Dry Gas Couplings
Loading / unloading of ship tankers and rail tankers
